n8n 'Invalid origin!' / Connection lost: nginx $http_host Fix

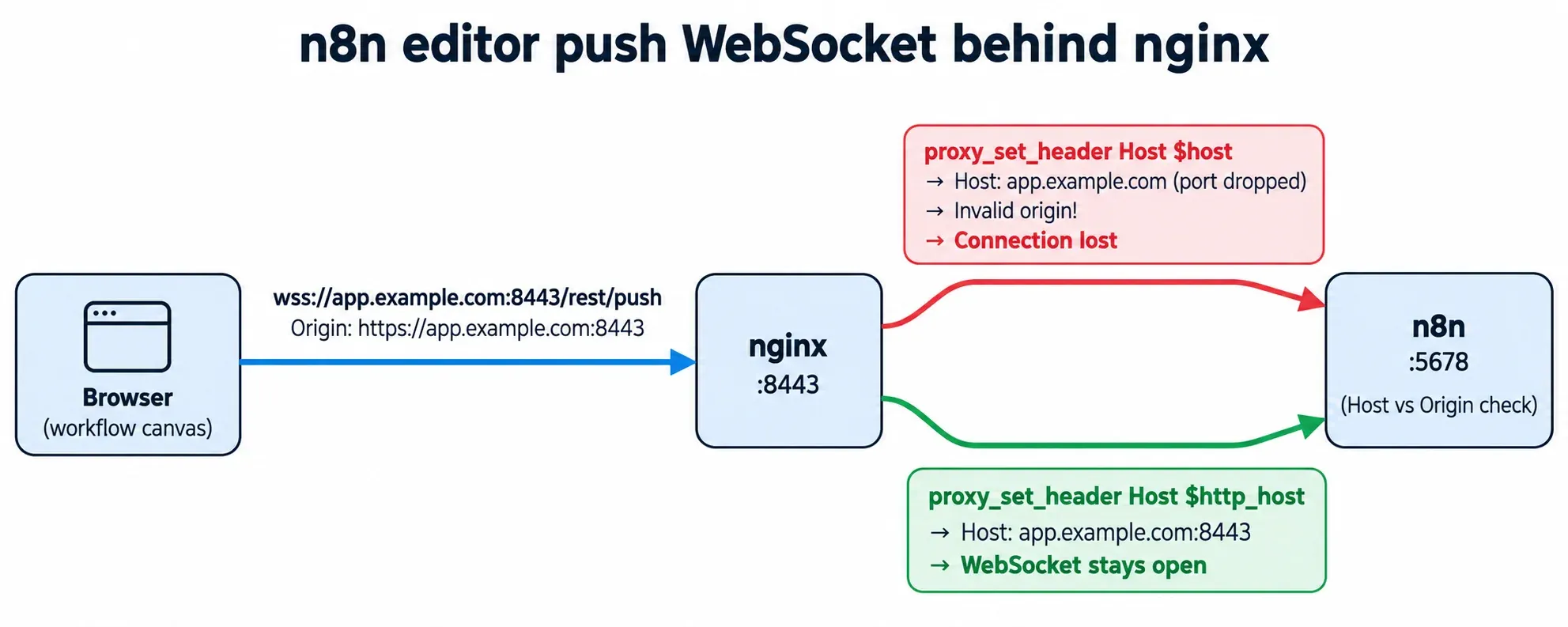

Request path diagram

Symptom

When accessing n8n through nginx over HTTPS on a non-default port (https://repro.local:8443), signing in succeeds (loginStatus: 200), but opening a workflow in the editor shows a “Connection lost” state on the canvas ("connectionLostVisible":true).

Note where this symptom appears in n8n 2.44.7:

The workflows overview page (/home/workflows) never opens a /rest/push WebSocket (0 WebSockets), so neither Invalid origin! nor "Connection lost" appears there.
Immediately after login, / lands on /assistant, where the push WebSocket does connect, but no "Connection lost" banner is shown.
“Connection lost” appears only on the workflow canvas (/workflow/<id>), so you must open an actual workflow to see the UI warning.

On the workflow canvas, the browser repeatedly attempts to connect to wss://repro.local:8443/rest/push—opening 20 WebSocket connections in 15 seconds (~1.3/s) with the same pushRef. Each socket receives the text frame Invalid origin! and is closed. Probe output (it lists only two of the 20 ws entries):

--- A. probe
{"label":"2-broken","secureCookieWarning":false,"loginStatus":200,"finalUrl":"https://repro.local:8443/signin?redirect=%252F","postLoginUrl":"https://repro.local:8443/assistant","editorUrl":"https://repro.local:8443/workflow/UCxBiJ4TRJmiTuqO","wsCount":20,"connectionLostVisible":true,"ws":[{"url":"wss://repro.local:8443/rest/push?pushRef=a57py7l4wn","frames":["<< Invalid origin!"],"closed":true},{"url":"wss://repro.local:8443/rest/push?pushRef=a57py7l4wn","frames":["<< Invalid origin!"],"closed":true}]}

At the same time, the n8n container logged this error (three lines captured during the broken round; not one per socket):

--- B. n8n log since round start
n8n-1  | Origin header does NOT match the expected origin. (Origin: "https://repro.local:8443" -> "repro.local:8443", Expected: "repro.local" -> "repro.local", Protocol: "https")
n8n-1  | Origin header does NOT match the expected origin. (Origin: "https://repro.local:8443" -> "repro.local:8443", Expected: "repro.local" -> "repro.local", Protocol: "https")
n8n-1  | Origin header does NOT match the expected origin. (Origin: "https://repro.local:8443" -> "repro.local:8443", Expected: "repro.local" -> "repro.local", Protocol: "https")

Confirm Which Layer

First, inspect the raw WebSocket handshake through nginx. Even with Upgrade and Connection headers configured in nginx, the HTTP upgrade itself returns HTTP/1.1 101 Switching Protocols, followed immediately by WebSocket text frame 81 0f ("Invalid origin!") and close frame 88 02 03 f0 (WebSocket close code 1008):

--- C. raw WS handshake via nginx
login 200
000000 48 54 54 50 2f 31 2e 31 20 31 30 31 20 53 77 69  >HTTP/1.1 101 Swi<
000010 74 63 68 69 6e 67 20 50 72 6f 74 6f 63 6f 6c 73  >tching Protocols<
000020 0d 0a 53 65 72 76 65 72 3a 20 6e 67 69 6e 78 2f  >..Server: nginx/<
000030 31 2e 32 37 2e 35 0d 0a 44 61 74 65 3a 20 54 68  >1.27.5..Date: Th<
000040 75 2c 20 32 39 20 4f 63 74 20 32 30 32 36 20 31  >u, 29 Oct 2026 1<
000050 37 3a 35 32 3a 32 37 20 47 4d 54 0d 0a 43 6f 6e  >7:52:27 GMT..Con<
000060 6e 65 63 74 69 6f 6e 3a 20 75 70 67 72 61 64 65  >nection: upgrade<
000070 0d 0a 55 70 67 72 61 64 65 3a 20 77 65 62 73 6f  >..Upgrade: webso<
000080 63 6b 65 74 0d 0a 53 65 63 2d 57 65 62 53 6f 63  >cket..Sec-WebSoc<
000090 6b 65 74 2d 41 63 63 65 70 74 3a 20 73 33 70 50  >ket-Accept: s3pP<
0000a0 4c 4d 42 69 54 78 61 51 39 6b 59 47 7a 7a 68 5a  >LMBiTxaQ9kYGzzhZ<
0000b0 52 62 4b 2b 78 4f 6f 3d 0d 0a 0d 0a 81 0f 49 6e  >RbK+xOo=......In<
0000c0 76 61 6c 69 64 20 6f 72 69 67 69 6e 21 88 02 03  >valid origin!...<
0000d0 f0 0a                                            >..<
0000d2
curl exit: 28

Second, test n8n directly on 127.0.0.1:5679 without nginx to confirm what n8n is comparing:

When Host is 127.0.0.1:5679 and Origin is http://127.0.0.1:5679 (matching port), n8n returns 101 Switching Protocols and keeps the WebSocket open until curl hits its timeout (curl exit 28).
When the same direct request is sent with Origin: http://127.0.0.1 (port dropped), n8n returns Invalid origin!.

# D. direct n8n baseline (no nginx), Host/Origin = 127.0.0.1:5679
direct login 200
cookie jar secure flags:
-- without manual Cookie header (curl withholds Secure cookie on http):
HTTP/1.1 101 Switching Protocols
-- with Cookie header passed manually (value not printed):
000000 48 54 54 50 2f 31 2e 31 20 31 30 31 20 53 77 69  >HTTP/1.1 101 Swi<
000010 74 63 68 69 6e 67 20 50 72 6f 74 6f 63 6f 6c 73  >tching Protocols<
000080 0a                                               >.<
000081
curl exit 28
-- direct, mismatched Origin (port dropped) as control:
.
..Invalid origin!....

This shows the check itself is Host vs Origin (host and port); nginx matters only because $host drops the port from Host before forwarding.

Cause

In the broken nginx configuration (2-broken.conf), the proxy forwards Host using $host:

# state: 2-broken.conf
server {
  listen 8081;
  server_name repro.local;
  location / {
    return 301 https://$host:8443$request_uri;
  }
}
server {
  listen 8443 ssl;
  server_name repro.local;
  ssl_certificate     /etc/nginx/certs/repro.crt;
  ssl_certificate_key /etc/nginx/certs/repro.key;
  location / {
    proxy_pass http://n8n:5678;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_read_timeout 3600s;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-Proto $scheme;
  }
}

As general nginx mechanism knowledge (documented in the nginx variables reference and consistent with the n8n log output above):

$host evaluates to the host name from the request line or Host header without the port number (repro.local).
$http_host evaluates to the raw Host request header exactly as sent by the client, including the non-default port (repro.local:8443).

When nginx uses proxy_set_header Host $host;, n8n receives Host: repro.local alongside the browser’s Origin: https://repro.local:8443. As shown in n8n’s log (Origin: "https://repro.local:8443" -> "repro.local:8443", Expected: "repro.local" -> "repro.local"), the expected value (taken from Host) has no :8443, so it does not match the origin, and n8n closes the WebSocket with Invalid origin!.

The One Change

In the nginx location / block on port 8443, change proxy_set_header Host $host; to proxy_set_header Host $http_host; and reload nginx:

-    proxy_set_header Host $host;
+    proxy_set_header Host $http_host;

Verify

With proxy_set_header Host $http_host; active (2-fixed.conf), the Playwright browser probe logs in, opens the workflow canvas, and stays connected (1–2 WebSockets opened, kept alive, receiving collaboratorsChanged events, with "connectionLostVisible":false and no origin error lines in the n8n log):

--- out/10-2-fixed.txt (excerpt: probe summary)
"label":"2-fixed","secureCookieWarning":false,"loginStatus":200,"finalUrl":"https://repro.local:8443/signin?redirect=%252F","postLoginUrl":"https://repro.local:8443/assistant","editorUrl":"https://repro.local:8443/workflow/UCxBiJ4TRJmiTuqO","wsCount":2,"connectionLostVisible":false,"ws":[{"url":"wss://repro.local:8443/rest/push?pushRef=mq8fl6eqj… (excerpt truncated)

Toggling between 2-broken.conf (Host $host) and 2-fixed.conf (Host $http_host) across four consecutive rounds reproduced and resolved the error every time (secureCookieWarning=false and loginStatus=200 held in every round):

Round	nginx Config	Browser Push WebSocket	`"Connection lost"` Visible on Canvas	Raw `curl` Handshake
`2-broken`	`Host $host`	20 WS in 15 s, each gets text frame `Invalid origin!` then closed	true	`101` → `81 0f "Invalid origin!"` → `88 02 03 f0` (close code 1008)
`2-fixed`	`Host $http_host`	1–2 WS, stay open, receive `collaboratorsChanged`	false	`101`, no frames, `curl` times out (exit 28)
`2-broken-again`	`Host $host`	same as broken	true	same as broken
`2-fixed-again`	`Host $http_host`	same as fixed	false	same as fixed

Minimal Working Config

# state: 2-fixed.conf
server {
  listen 8081;
  server_name repro.local;
  location / {
    return 301 https://$host:8443$request_uri;
  }
}
server {
  listen 8443 ssl;
  server_name repro.local;
  ssl_certificate     /etc/nginx/certs/repro.crt;
  ssl_certificate_key /etc/nginx/certs/repro.key;
  location / {
    proxy_pass http://n8n:5678;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_read_timeout 3600s;
    proxy_set_header Host $http_host;
    proxy_set_header X-Forwarded-Proto $scheme;
  }
}

Untested / Not Covered

Missing Upgrade / Connection headers in nginx (C2 comparison): Not tested in this run; proxy_set_header Upgrade $http_upgrade; and proxy_set_header Connection "upgrade"; were present throughout all four test rounds. We make no claim here about what error message or status code appears when those headers are omitted.

n8n Webhook Returns 404 Behind nginx (Sub-Path Proxy): that article’s config uses Host $host on port 8081; it covers webhooks only, and the editor on that setup hits this error.
n8n’s Secure Cookie Warning Behind nginx: the same HTTPS-on-8443 setup, opened over plain HTTP.
